Golf Cart Brakes Squeaking or Grinding?

Short answer: Most golf cart brake squeaks come from worn shoes, rust built up on the drum, or dirt packed inside the brake housing. Grinding usually means the shoe material is worn down to bare metal and the brakes are not stopping the cart the way they should. Either way, it is worth having the brakes looked at soon, especially before you take the cart down a hill or across wet grass.

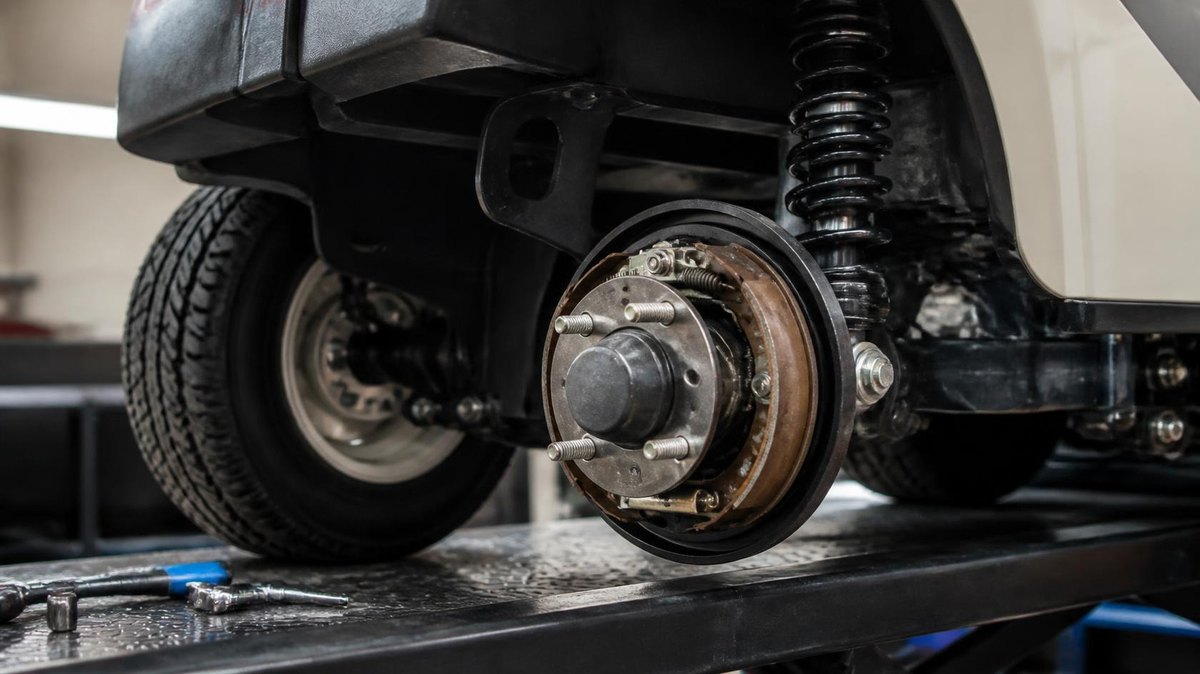

Drum Brakes and Worn Shoes

Most golf carts use drum brakes, not disc brakes. Inside each wheel, curved shoes press out against the inside of a metal drum to slow the cart down. The shoes are lined with a friction material that wears down a little every time you brake.

As that material thins out, a few things happen:

• The shoe starts to ride closer to the drum, which can cause a light squeal.
• Worn material glazes over and gets hard, which makes noise worse.
• Once the lining wears through, bare metal touches the drum, and that is the grinding sound.

Grinding is a clear sign the shoes need to be replaced. Waiting on this just means less stopping power every time you drive.

Dirt, Rust, and Other Causes of Squeaking

Golf carts spend a lot of time outside. Dust, grass clippings, and moisture work their way into the brake drums over time. A cart that sits for a few days, especially after rain or heavy dew, can build light surface rust on the inside of the drums. That rust can cause a squeak for the first several stops after the cart sits, then quiet down once it wears off.

Dirt is a different problem. It packs in around the shoes and linkage, and it can hold moisture against the metal longer than it should. If the squeak keeps coming back instead of fading after a few stops, dirt or ongoing rust is more likely than simple surface rust, and the brakes should be opened up and cleaned.

Adjustment and Cables

Drum brakes on most carts are set by a mechanical linkage and cable, not hydraulics. Over time, cables stretch and linkage parts wear at the pivot points. When that happens, the shoes sit farther from the drum than they should, or one side ends up tighter than the other.

A brake that is out of adjustment can:

1. Squeak or drag because the shoe is not centered in the drum.
2. Cause the cart to pull to one side when braking.
3. Wear unevenly, so one shoe wears out faster than the other.

Adjusting the linkage and checking the cable for fraying or stretch is routine brake maintenance. It is also one of the simplest fixes for a squeak that is not caused by worn shoes.

When It Becomes a Safety Issue

A light, occasional squeak on a cart that still stops firmly and evenly is usually just noise. Grinding is not. Neither is a brake pedal that feels soft, travels farther than normal, or a cart that pulls hard to one side when you brake.

Brakes are a safety system. If you notice any of the following, treat it as more than a noise complaint and have the cart checked before driving it much further:

• Grinding or a metal-on-metal sound.
• The cart pulling to one side when stopping.
• A pedal that feels loose or goes down farther than it used to.
• Longer stopping distances than you remember.

Stopping Power on Hills and Wet Grass

Brakes that are just barely getting the job done on flat, dry pavement often are not enough on a hill or on wet grass. Wet grass is slick, and a cart needs more consistent braking force to stop in the same distance it would on dry ground. Hills add load to the brakes going down and reduce your margin for error if they are weak or uneven.

If your cart is used near sloped driveways, boat ramps, or grass that stays damp near the shoreline, worn or poorly adjusted brakes are a bigger problem than they would be on a flat paved lot. This is a common situation for carts used around the lake.

Brake Service Around Quinlan and Lake Tawakoni

We work on golf cart brakes for customers in Quinlan, Greenville, Lone Oak, and the Lake Tawakoni towns including West Tawakoni and Point. A lot of these carts spend time on grass, gravel, and boat ramps, which is exactly the kind of use that wears out shoes and loosens cable adjustment faster than street driving.

If your cart's brakes are squeaking, grinding, or just do not feel as strong as they used to, call or text us at 903 458 2311. We are available Monday to Saturday, and we can take a look in the shop or come to you.
